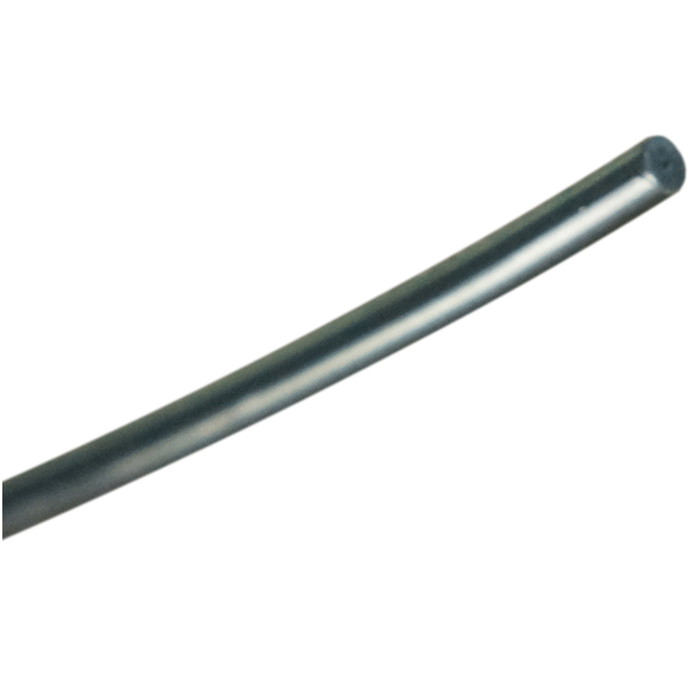

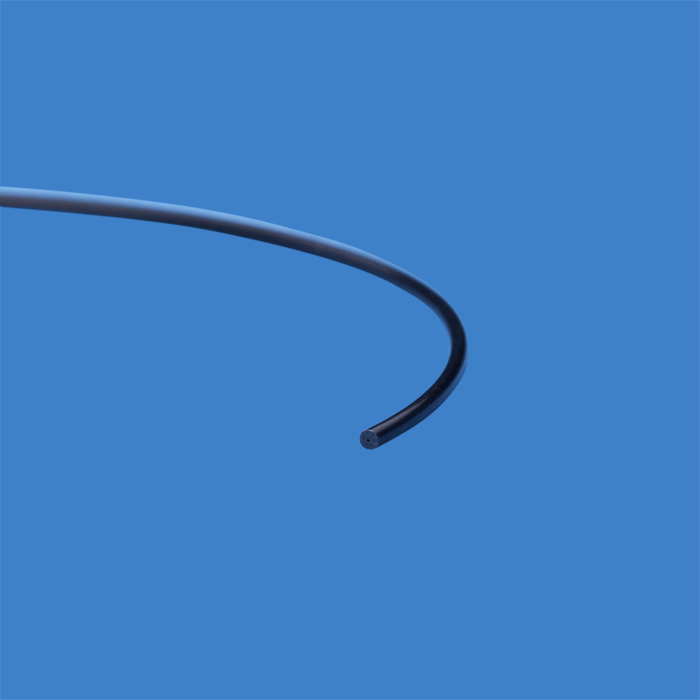

Tubing, PTFE, 0.010 inch (0.25 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, black, 1 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
47240-40-1M ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution designed for HPLC, UHPLC, LC‑MS, and general laboratory applications, offering enhanced flow capacity and visual line differentiation for organized system setups.
Manufactured from 100% virgin PTFE resin, this tubing contains no additives or plasticizers, except for trace pigment used for visual identification, ensuring low extractables and compatibility with sensitive analytical methods.
Precision Dimensions – Increased Flow Capacity
Inner Diameter (ID): 0.010" (0.25 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.675 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Larger ID supports higher flow rates and reduced restriction compared to smaller ID tubing
Black Pigmentation – Visual Line Identification
Black‑pigmented PTFE tubing
Supports:
Fluid line identification
Differentiation between solvent paths
Organized system layouts
✅ Used for visual identification only (no functional color coding implied)
Low‑Pressure Chromatography Performance
Designed for low‑pressure fluid paths, including:
Pre‑pump mobile phase delivery
Post‑detector waste lines
General solvent transfer
Pressure Rating: 800 psi (55.2 bar)
✅ Ensures stable and reliable solvent handling
Virgin PTFE Construction – High Purity & Inertness
Made from 100% virgin PTFE
No additives (except trace pigment)
Chemically inert and non‑reactive
✅ Minimizes contamination risk in LC‑MS and trace‑level applications
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Suitable for demanding analytical environments
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing slight gas exchange
Important when working with:
Degassed solvents
Oxygen‑sensitive workflows
✅ Consider alternative materials when gas impermeability is critical
Flexible & Durable Design
Flexible for easy routing and system integration
Durable for repeated lab use
Maintains visual differentiation of lines despite pigmentation
✅ Supports efficient installation and maintenance
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets environmental and safety standards
Available Length Options
✅ Select the length suited to your application:
1 meter roll (this item)
✅ Custom cut lengths available through Customer Service
Typical Applications
HPLC mobile phase delivery (pre‑pump)
Solvent waste lines
Multi‑line systems requiring visual differentiation
Low‑pressure fluid transfer
OEM and instrument integration
Important Usage Notes
Not intended for high‑pressure HPLC pump connections
Black pigmentation is for visual identification only
Consider permeability with degassed or oxygen‑sensitive solvents
Ensure proper fittings for secure connections
